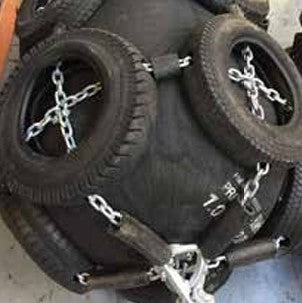

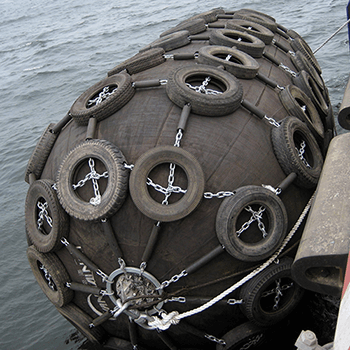

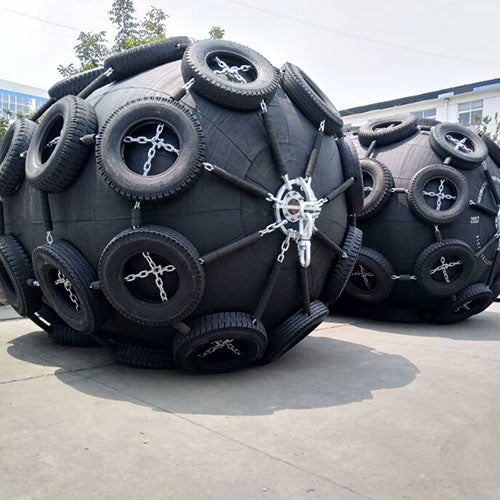

The commonly used pneumatic fender with tire net offers robust protection, featuring a net made of car/truck/plane tires linked by galvanized horizontal and vertical chains. This netting shields the fender body while the chains, equipped with rubber sleeves, prevent damage to the ship. Key components like the towing ring, flange, and swivel are also available in stainless steel for enhanced durability. These fenders are ready in stock with an internal pressure of 0.5 bar, and can be customized to 0.8 bar as needed.
GROTE VOORRAAD
KWALITEIT
EERLIJKE PRIJZEN

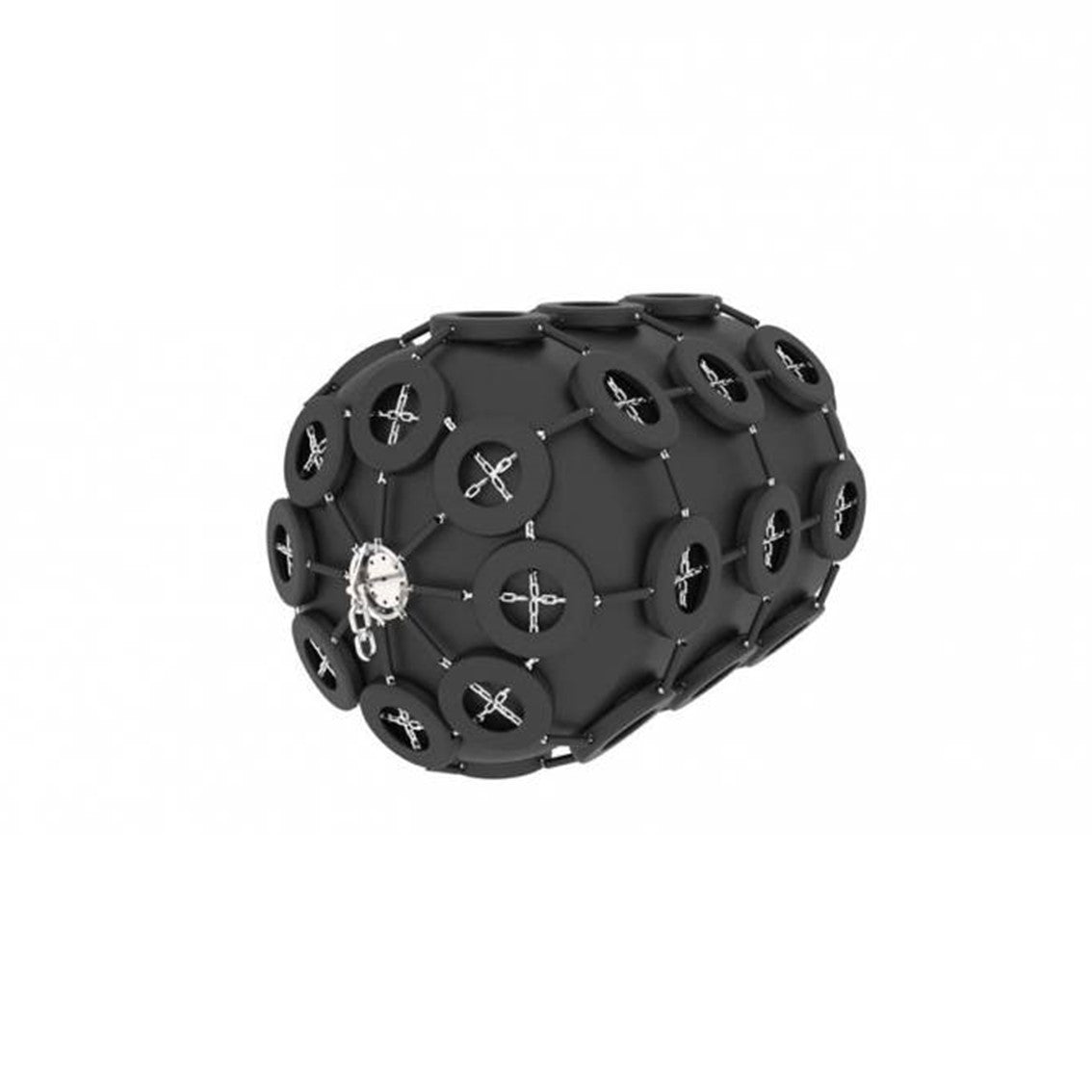

Pneumatic fenders with tire net
Pneumatic fenders with tire net
Verfügbarkeit für Abholungen konnte nicht geladen werden

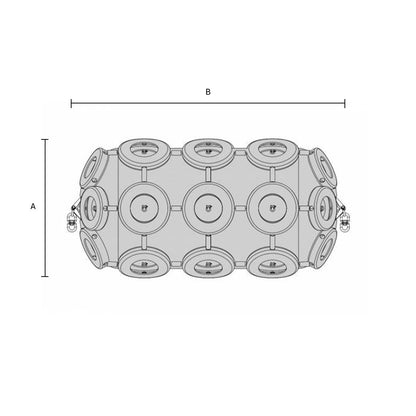

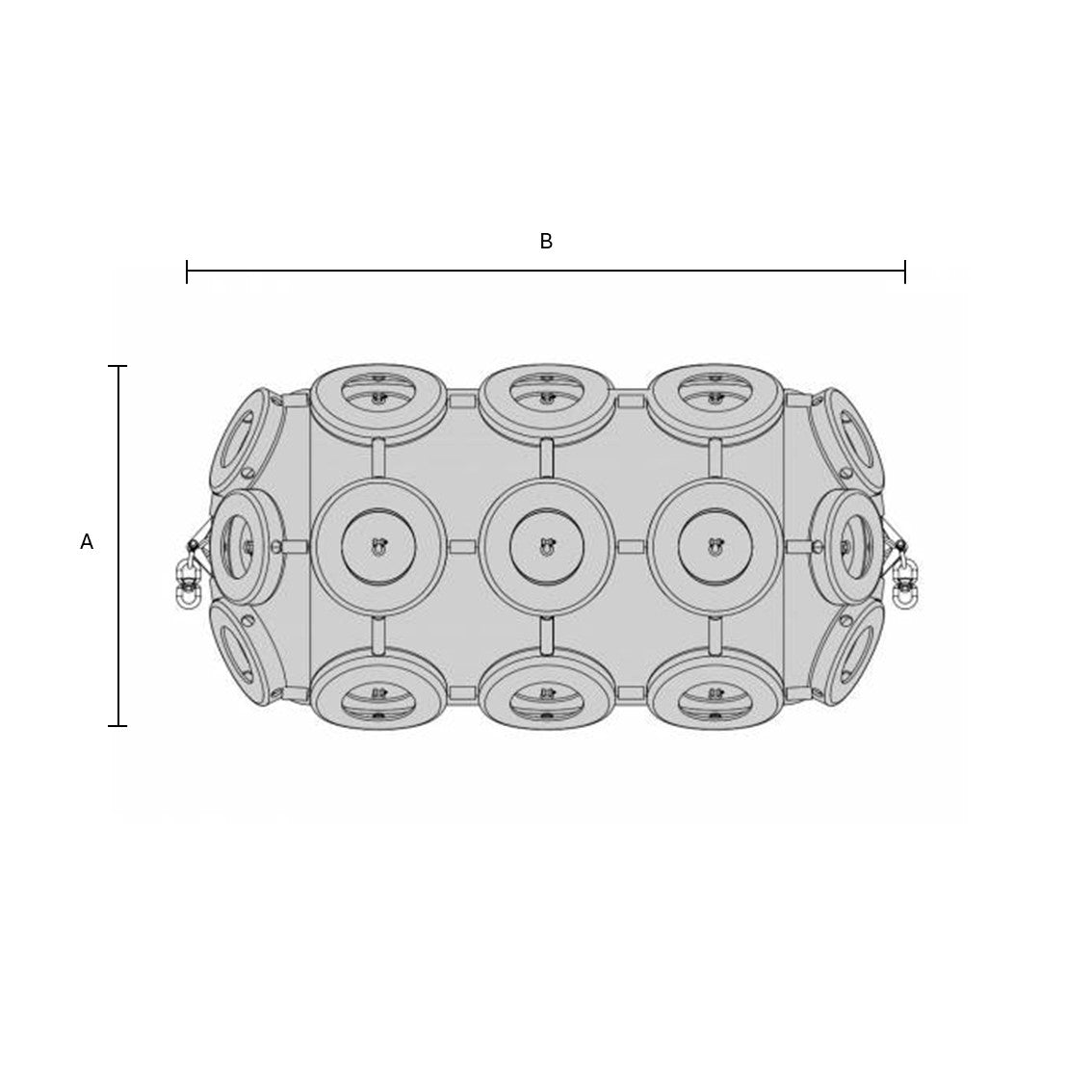

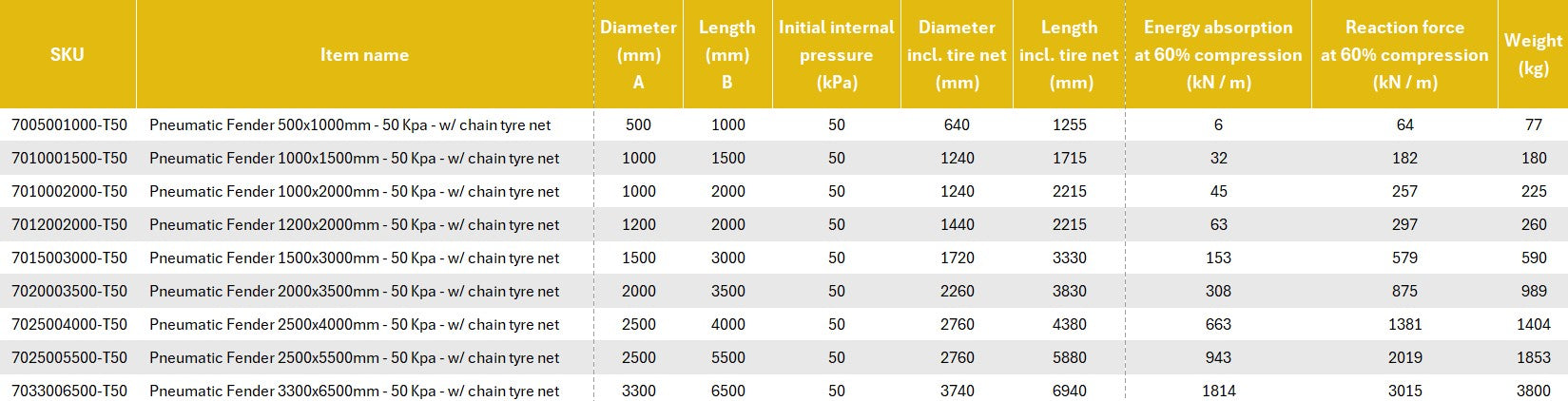

| SKU | Item name | Diameter A (mm) | Length B (mm) | Initial Internal Pressure (kPa) | Diameter incl. tire net (mm) | Length incl. tire net (mm) | Energy Absorption at 60% Compression (kN/m) | Reaction Force at 60% Compression (kN/m) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 7005001000-T50 | Pneumatic Fender 500×1000mm – 50 kPa – w/ chain tyre net | 500 | 1000 | 50 | 640 | 1255 | 6 | 64 | 77 |
| 7010001500-T50 | Pneumatic Fender 1000×1500mm – 50 kPa – w/ chain tyre net | 1000 | 1500 | 50 | 1240 | 1715 | 32 | 182 | 180 |
| 7010002000-T50 | Pneumatic Fender 1000×2000mm – 50 kPa – w/ chain tyre net | 1000 | 2000 | 50 | 1240 | 2215 | 45 | 257 | 225 |
| 7012002000-T50 | Pneumatic Fender 1200×2000mm – 50 kPa – w/ chain tyre net | 1200 | 2000 | 50 | 1440 | 2215 | 63 | 297 | 260 |
| 7015003000-T50 | Pneumatic Fender 1500×3000mm – 50 kPa – w/ chain tyre net | 1500 | 3000 | 50 | 1720 | 3330 | 153 | 579 | 590 |
| 7020003500-T50 | Pneumatic Fender 2000×3500mm – 50 kPa – w/ chain tyre net | 2000 | 3500 | 50 | 2260 | 3830 | 308 | 875 | 989 |
| 7025004000-T50 | Pneumatic Fender 2500×4000mm – 50 kPa – w/ chain tyre net | 2500 | 4000 | 50 | 2760 | 4380 | 663 | 1381 | 1404 |
| 7025005500-T50 | Pneumatic Fender 2500×5500mm – 50 kPa – w/ chain tyre net | 2500 | 5500 | 50 | 2760 | 5880 | 943 | 2019 | 1853 |
| 7033006500-T50 | Pneumatic Fender 3300×6500mm – 50 kPa – w/ chain tyre net | 3300 | 6500 | 50 | 3740 | 6940 | 1814 | 3015 | 3800 |
ISO 17357 GEKEURDE PNEUMATISCHE FENDER
Alle onze pneumatische fenders zijn goedgekeurd volgens ISO 17357. Het bandennet biedt extra bescherming. De kettingen, schakkels en draaipunten zijn gegalvaniseerd, zodat ze stevig en roestbestendig zijn.
